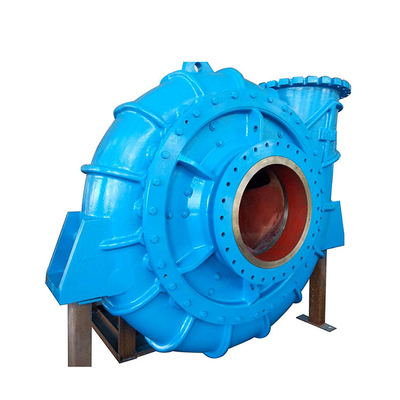

Developing World Water Solutions Boxin Large 8/6 Inch Size Partical Dredge River Sand Gravel Pump

1 set
MOQ
$4,500.00(1 - 1 sets) $4,300.00(2 - 2 sets) $4,100.00(>=3 sets)
Prijs
Developing World Water Solutions Boxin Large 8/6 Inch Size Partical Dredge River Sand Gravel Pump
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 1 year, 12 months
Customized support: OEM, ODM, OBM
Model Number: 200/150E-G
Application: Developing World Water Solutions, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions
Horsepower: 120HP, or as customer request
Power Source: Diesel Engine or electric
Pressure: High Pressure
Structure: Single-stage Pump,Centrifugal pumps
Outlet Size: 100mm
Voltage: 380-600 V as required
Product name: Sand or gravel dredging pump
Function: River, sea, lake, port dredging
Engine type: Diesel or electric
Inlet dia.: 200mm
Outlet dia: 150mm
Head: 10-48m
Capacity: 38-160 l/s
Speed: 800-1400r/min
Particle size: Max. 127mm
Certificering: ce, CCS, ISO9001
Basis informatie
Certificering: ce, CCS, ISO9001
Model Number: 200/150E-G
Betalen & Verzenden Algemene voorwaarden
Packaging Details: In carton or in bulk or in container
Productomschrijving
Product Overview

G (A) Series sand, mud, slurry, stone, gravel dredging pump

G (A) series dredging pump belongs to the international leading technology products. The pump adopts a single pump shell structure which is connected with a cassette or a bolt, and is a single stage single suction cantilever horizontal centrifugal pump. It has the advantages of light weight, good cavitation performance, strong abrasion resistance, spacious passage channel, easy installation and so on, it can be used for large granule abrasive sand continuous conveying, suitable for dredging sand and dredging slurry from river.

The pump is composed of a pump head, a sealing assembly, a bearing assembly, a bracket (or a gearbox assembly), and the lubrication method of the bearing is grease lubrication or dilute oil lubrication. The impeller, the pump body, the front guard plate and the rear guard plate of the over-current component are all used strong anti-wear alloy cast iron or wear-resisting alloy steel, hardness not less than 58HRC.
FEATURES AT A GLANCE
Performance and structural characteristics of G (A) series Dredging pump:
* Simple and reliable structure, easy disassembly, easy maintenance
* Good dredging properties
* Good cavitation performance
* Strong flow capacity, wide applicability
* Performance curve acts drop
* Can realize the pump performance of a variety of deployment
* Good abrasion resistance and long life of over-current components
* Small hydraulic loss, high efficiency, low energy consumption
* Reliable shaft seal without leakage
Side elevation Back elevation Side elevation

G (A) Series Dredging Pump Profile (for preliminary selection only)
PRODUCT SPECIFICATIONS
Model
Capacity (m3/h)
Head (m)
Speed (r/min)
Efficiency (%)
NPSHr
(m)
Inlet Dia. (mm)
Outlet Dia.
(mm)
Max.Dia.of flowed Particle (mm)
150/100D-G
10-70
3.5-51
600-1400
30-50
2.5-3.5
150
100
82
200/150E-G
38-160
10-48
800-1400
50-60
3-4.5
200
150
127
250/200S-G
60-272
13-50
500-1000
45-65
3-7.5
250
200
178
250/200F-G
60-272
13-50
500-1000
45-65
3-7.5
250
200
178
300/250F-G
100-420
11-58
400-850
50-70
2-4.5
300
250
220
300/250G-G
100-420
11-58
400-850
50-70
2-4.5
300
250
220
350/300G-G
140-880
6-66
300-700
60-68
2-8
350
300
241
450/400G-G
240-1060
9-48
250-500
60-72
3-6
450
400
254
450/400T-G
240-1060
9-48
250-500
60-72
3-6
450
400
254
250/200S-GH
110-360
18-80
500-950
60-72
2-5
250
200
180
300/400T-GH
170-620
28-78
350-700
60-72
2-8
300
250
210
400/350TU-GH
200-1000
20-72
300-500
60-72
3-6
400
350
230
PRODUCT CONFIGURATION
Pump casing
Material: Strong unique wear resistant white cast iron A05
Brand: Boxin
Original: China Shijiazhuang
Impeller
Material: Strong wear resistant alloy cast iron KB17
Brand: Boxin
Original: China Shijiazhuang
Front and rear guards
Material: Strong wear resistant alloy cast iron KB17
Brand: Boxin
Original: China Shijiazhuang
Bearing assembly
Material: High quality alloy steel
Wafangdian Bearing
Suitable material
Slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for
transportation of abrasive solid slurry.





G(A) type dredge pump shaft seal form
Successful Project
Project in cutter suction dredger
Project in wheel bucket dredger
Project in jet suction dredger
Project in river sand dredger
Project in fish boat
Project in big sea sand dredger
SIMILAR PRODUCTS
WN type dredging pump
Slurry pump
Gravel pump
Company Profile
Shijiazhuang Boxin Pump Co., Ltd. is a collection of scientific research, design, manufacturing in one of the slurry pump and dredging the main production base of mud pump, Complete Product Specifications, Excellent performance, Reliable operation. We are specializing in the production of pumps for 50 years. Its design, development and production capacity are ranked in the forefront of the same industry, has strong market competitiveness and good corporate integrity, Many times by the relevant departments as the contract and trustworthy enterprise.
Our company mainly produces G (A), WN type dredging pump and Ah, ZGB, ZJ, and ZQ (submersible) Slurry pump Products, at the same time provide supporting valves, cyclones, control cabinets and other products, widely used in mining, dredging, metallurgy, steel, coal, electricity, water conservancy and other enterprises and institutions.
Workshop
Our Service

Pre-Sales Service

Receive client’s inquiry
Introduce various pump to clients
Study clients mining and dredging conditions
Recommend reasonable pump to clients

Engineers supply oversea after-sales service at worksite

Free oversea after-Sales Service

Inspection and testing before delivery
Engineers installation and training service
Supply all relevant drawings to clients
Timely supply of required accessories


Certificate
Test certificate of marine pump by CCS
Test certificate of marine pump by CCS
Test certificate of marine pump by CCS
Clients visiting
Boxin pump signed long-term cooperation contract with customers.
Boxin pump signed long-term cooperation contract with customers.
Boxin pump signed long-term cooperation contract with customers.
FAQ
Q1: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q2: What about the delivery?
Our equipments can be in bulk or in containers by sea.
We have various pumps and spare parts in stock, can finish manufacture in short time.

Q3: What's the warranty?
We provide one-year warranty period, free maintenance and repair if any quality problem.

Q4: Do you have after-sales service?
Yes.
Free installing and training operation and maintenance of pump.
Free repair if have any quality problems during working.
Lifetime service for pump.
